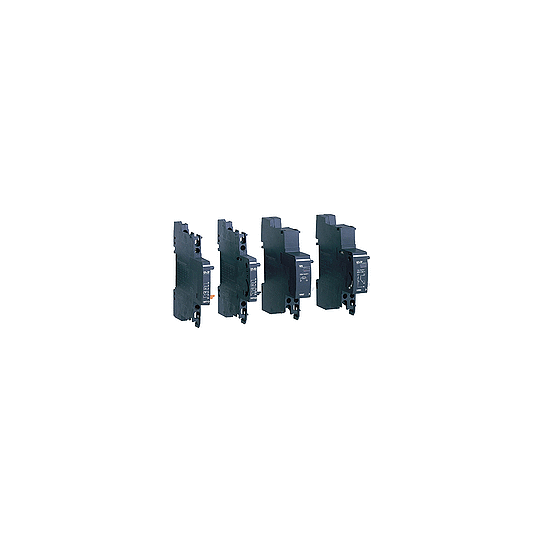

voltage release - MX - OF - 230..415 V AC - 19064
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product or component type: | Shunt trip release with OC contact |
| Range of product: | NG125 |
| Device short name: | MX + OF |
| Signal contacts composition: | 1 C/O |
| [Ie] rated operational current: | 3 A at >= 240 V AC6 A at 1 A at 130 V DC2 A at 6 A at |
| [Uc] control circuit voltage: | 230...415 V AC 50/60 Hz110...130 V DC |
| 9 mm pitches: | 2 |
| Product compatibility: | NG125 |
| Range compatibility: | Vigi NG125Acti 9 NG125LMAActi 9 NG125NAActi 9 NG125 |
|---|---|
| [Ui] rated insulation voltage: | 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to EN/IEC 60947-5-1 |
| Local signalling: | Action indicator |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| Height: | 106 mm |
| Width: | 33 mm |
| Depth: | 78 mm |
| Product weight: | 0.129 kg |
| Electrical durability: | 10000 cycles conforming to EN/IEC 60947-5-1 |
| Connections - terminals: | Plate terminal - 1 cable(s) 0.5...2.5 mm² - rigidPlate terminal - 1 cable(s) 0.5...1.5 mm² - flexiblePlate terminal - 1 cable(s) 0.5...1.5 mm² - flexible with ferrulePlate terminal - 2 cable(s) 2.5 mm² - flexiblePlate terminal - 2 cable(s) 2.5 mm² - rigidPlate terminal - 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length: | 10 mm |
| Tightening torque: | 1 N.m |
| Compatibility code: | MX + OF |
| Market segment: | Small commercial |
| Standards: | EN/IEC 60947-5-1 |
|---|---|
| Product certifications: | ASEFAASTALCIEKEMA |
| IP degree of protection: | IP20 B conforming to EN/IEC 60947-5-1IP4 conforming to EN/IEC 60947-5-1 |
| Pollution degree: | 3 conforming to EN/IEC 60947-5-1 |
| Overvoltage category: | II |
| Tropicalisation: | 2 conforming to EN/IEC 60947-5-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3303430190646 |
|---|
