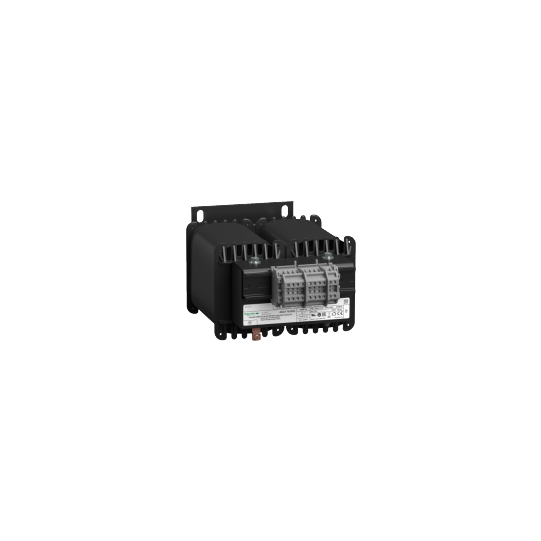

voltage transformer - 230..400 V - 1 x 230 V - 2500 VA - ABL6TS250U
SKU : ABL6TS250U
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
voltage transformer - 230..400 V - 1 x 230 V - 2500 VA - ABL6TS250U
DESCRIPTION
| Range of product: | Modicon Transformer Optimized |
|---|---|
| Product or component type: | Safety and isolation transformer |
| Rated power in VA: | 2500 VA |
| Input voltage: | 230 V AC single phase, terminal(s): N-L1400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage: | 230 V AC |
| Secondary winding: | Single |
| Protective cover: | Without |
| Ambient air temperature for operation: | -20...50 °C |
| Input voltage limits: | 207...253 V360...440 V |
|---|---|
| Network frequency limits: | 47...63 Hz |
| Input voltage tolerance: | +/- 15 V |
| Efficiency: | 96 % |
| Power dissipation in W: | 104.2 W |
| Output sustained overvoltage: | 3 % (no load, hot state) |
| Maximum voltage drop at rated load: | 0 % |
| No load losses: | 23.4 W |
| Short-circuit voltage: | 0,0873 |
| Output protection type: | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of ProtectionAgainst overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of ProtectionAgainst short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals: | For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11For input connection: screw type terminals, connection capacity: 8 x 4 mm² AWG 11 |
| Marking: | CE |
| Fixing mode: | By 4 screws diameter: 10 mm on vertical panel, operating position: horizontalBy 4 screws diameter: 10 mm on vertical panel, operating position: verticalBy 4 screws diameter: 10 mm on horizontal panel with derating to 90 % |
| Operating altitude: | 3000 m |
| Electrical insulation class: | Class B |
| Width: | 196.0 mm |
| Height: | 147.0 mm |
| Depth: | 322.0 mm |
| Net weight: | 25.67 kg |
| Compatibility code: | ABL6T |
| Product certifications: | UREACDNV-GL |
|---|---|
| Standards: | UL 506 |
| IP degree of protection: | IP20 |
| Environmental characteristic: | EMC conforming to EN 62041Safety conforming to EN 61558-1Safety conforming to EN 61558-2-4 |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...80 °C |
| Overvoltage category: | Class I conforming to VDE 0106-1 |
| Dielectric strength: | 2000 V between winding and ground4000 V between primary and secondary |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110880373 |
|---|
