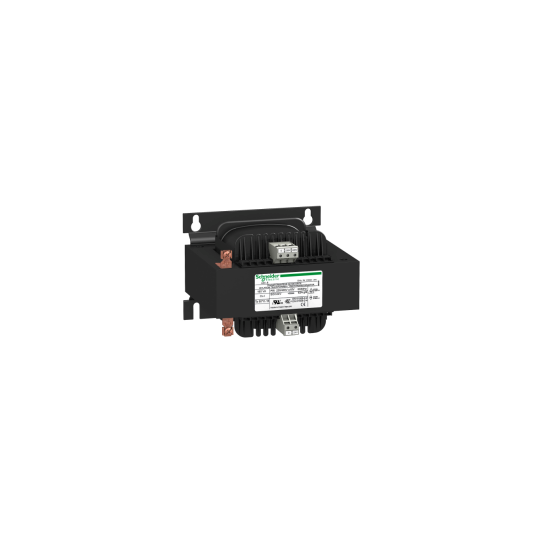

voltage transformer - 230..400 V - 1 x 24 V - 250 VA - ABL6TS25B
DESCRIPTION
| Range of product: | Modicon Transformer Optimized |
|---|---|
| Product or component type: | Safety and isolation transformer |
| Rated power in VA: | 250 VA |
| Input voltage: | 230 V AC single phase, terminal(s): N-L1400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage: | 24 V AC |
| Secondary winding: | Single |
| Protective cover: | Without |
| Ambient air temperature for operation: | -20...50 °C |
| Input voltage limits: | 360...440 V207...253 V |
|---|---|
| Network frequency limits: | 47...63 Hz |
| Input voltage tolerance: | +/- 15 V |
| Efficiency: | 90 % |
| Power dissipation in W: | 27.8 W |
| Output sustained overvoltage: | 6 % (no load, hot state) |
| Maximum voltage drop at rated load: | 0.1 % |
| No load losses: | 12.5 W |
| Short-circuit voltage: | 0,0551 |
| Output protection type: | Against overload, protection technology: externalAgainst overvoltage, protection technology: externalAgainst short-circuits, protection technology: external |
| Connections - terminals: | For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
| Marking: | CE |
| Fixing mode: | By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontalBy 4 screws diameter: 5.8 mm on vertical panel, operating position: verticalBy 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
| Operating altitude: | 3000 m |
| Electrical insulation class: | Class B |
| Width: | 120.0 mm |
| Height: | 85.0 mm |
| Depth: | 122.0 mm |
| Product weight: | 4.2 kg |
| Compatibility code: | ABL6T |
| Product certifications: | UREACDNV-GL |
|---|---|
| Standards: | UL 506 |
| IP degree of protection: | IP20 |
| Environmental characteristic: | EMC conforming to EN 62041Safety conforming to EN 61558-1Safety conforming to EN 61558-2-6 |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...80 °C |
| Overvoltage category: | Class I conforming to VDE 0106-1 |
| Dielectric strength: | 2000 V between winding and ground4000 V between primary and secondary |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110598025 |
|---|
