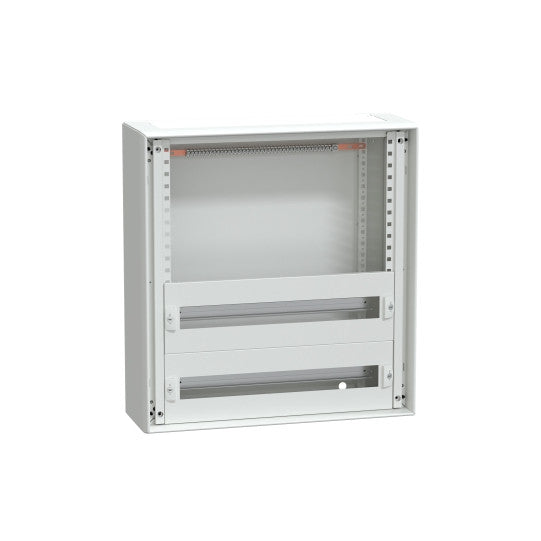

WALL-MOUNTED ENCLOSURE 2 ROWS + 6M FREE PRISMA PACK250 IP30 - LVS08064
SKU : LVS08064
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
WALL-MOUNTED ENCLOSURE 2 ROWS + 6M FREE PRISMA PACK250 IP30 - LVS08064
DESCRIPTION
| Range: | Prisma |
|---|---|
| Range of product: | Prisma G |
| Product name: | Prisma Pack 250 |
| Product or component type: | Enclosure |
| Enclosure type: | Modular enclosure delivered in kit form |
| Enclosure/cubicle description: | Wall-mounted enclosure - width 600 mm |
| Enclosure mounting: | SurfaceFlush with kit |
| Provided equipment: | 2 x front plate2 x modular rail1 x earthing kit1 x wall mounting enclosure |
| Additional information: | Can be combined side by side and one on top of another |
| Type of front cover: | ModularFree 6M zone to be ordered separately |
| Number of vertical modules [50 mm]: | 12 |
| Number of horizontal rows: | 2 |
| Number of 18 mm modules per row: | 24 |
| Standards: | IEC 62208IEC 61439-1IEC 61439-2 |
| [Ui] rated insulation voltage: | 1000 V on main rear busbars conforming to IEC 61439-2 |
|---|---|
| Network frequency: | 50/60 Hz |
| [In] rated current: | 250 A at 40 °C conforming to IEC 61439-2 |
| [Icw] rated short-time withstand current: | 25 kA 1 s conforming to IEC 61439-2 |
| [Ipk] rated peak withstand current: | 53 kA conforming to IEC 61439-2 |
| Electrical insulation class: | Class I |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattSmooth |
| Colour: | White (RAL 9003) |
| Width: | 600 mm |
| Height: | 630 mm |
| Depth: | 205 mm |
| Product weight: | 12.5 kg |
| Quantity per set: | Set of 1 |
| IP degree of protection: | IP43 with door, canopy and IP43 gasketIP30 without doorIP40 with doorIP41 with door and canopy |
|---|---|
| IK degree of protection: | IK07 without door conforming to EN/IEC 62262IK08 with door |
| Mechanical robustness: | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481876799 |
|---|
