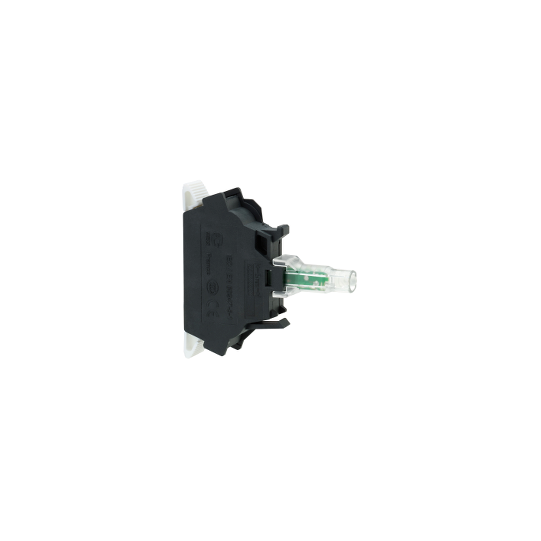

white light block for head Ø22 integral LED 230...240V spring clamp terminals - ZBVM15
DESCRIPTION
| Range of product: | Harmony XB5Harmony XB4 |
|---|---|
| Product or component type: | Light block |
| Device short name: | ZBV |
| Sale per indivisible quantity: | 1 |
| Connections - terminals: | Spring clamp terminals |
| Signalling type: | Steady |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light block supply: | Direct |
| Light source colour: | White |
| [Us] rated supply voltage: | 230...240 V AC at 50/60 Hz |
| Product weight: | 0.016 kg |
|---|---|
| Supply voltage limits: | 195...264 V AC |
| Current consumption: | 14 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Mounting of block: | Front mounting |
| Electrical composition code: | M1M2M3M4M5M6M10MF1P1P2PF1 |
| Compatibility code: | ZBV |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Standards: | EN/IEC 60947-5-5EN/IEC 60947-1EN/IEC 60947-5-4UL 508CSA C22.2 No 14EN/IEC 60947-5-1JIS C8201-5-1JIS C8201-1 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| [Us] rated supply voltage: | 230...240 V |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119037594 |
|---|
