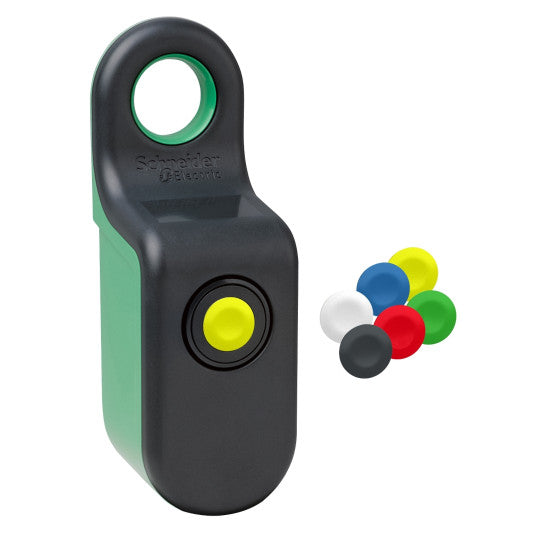

wireless and battery less handy box, 1 simple action button - ZBRM21A0
SKU : ZBRM21A0
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
wireless and battery less handy box, 1 simple action button - ZBRM21A0
DESCRIPTION
| Range of product: | Harmony XB5R |
|---|---|
| Product or component type: | Wireless and batteryless transmitter |
| Device short name: | XB5R |
| Contact operation: | 1 simple action push-button |
| Bezel material: | Plastic |
| Fixing collar material: | Plastic |
| Mounting diameter: | 22 mm |
| Kit composition: | 1 handy box1 transmitter1 set of caps1 push-button head diameter: 22 mm1 fixing collars |
|---|---|
| Shape of signaling unit head: | Round |
| Type of operator: | spring return push-button with transmitter |
| Operator profile: | Flush |
| Operator additional information: | Set of caps |
| CAD overall width: | 65 mm |
| CAD overall height: | 163 mm |
| CAD overall depth: | 65 mm |
| Product weight: | 0.15 kg |
| Mechanical durability: | 1000000 cycles |
| Operating travel: | 4.3 mm (total travel) |
| Operating force: | 25 N C/O changing electrical state |
| Shock resistance: | 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-2730 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Mechanical robustness: | Free fall resistance 1000 mm conforming to EN/IEC 60068-2-32 |
| Communication port protocol: | Zigbee green power at 2.4 GHz |
| Maximum sensing distance: | 100 m in free field25 m transmitter in the handy box and receiver in a metal enclosure300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna |
| Acquisition time: | 2 ms |
| Response time: | |
| Emission power: | 3 mW |
| Main group: | Wireless push-button |
| Group of product: | Flush push wireless |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| IP degree of protection: | IP65 (front face) conforming to IEC 60529IP65 (front face) conforming to UL Type 12 |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Relative humidity: | 95 % at 70 °C without condensation |
| Vibration resistance: | 5 gn (f= 11...500 Hz) conforming to IEC 60068-2-6+/- 10 mm (f= 2...11 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2Electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2Susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3Susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3 |
| Radio agreement: | RSS conforming to UL 508ARIB T66 conforming to CSA C22.2 No 14ICASAANATELFCC |
| Standards: | EN/IEC 60947-1UL 508CSA C22.2 No 14EN/IEC 60947-5-1 |
| Product certifications: | EACBT 2006/95/ECC-TickULCSACCC |
| Directives: | 1999/5/EC - R&TTE directive2004/108/EC - electromagnetic compatibility |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480891076 |
|---|
