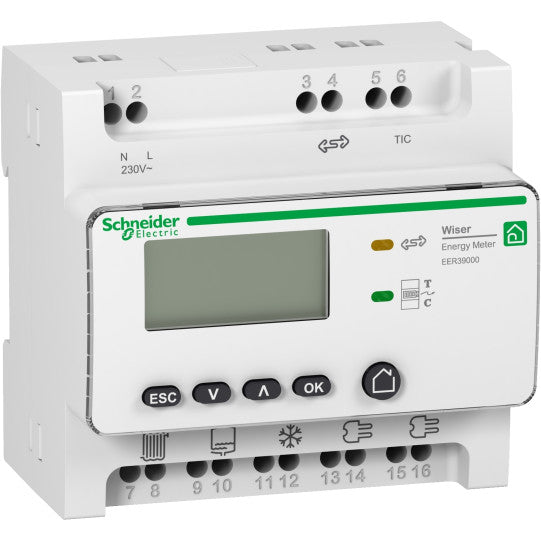

Wiser Link - Energy meter with 5 sensors - EER39000
DESCRIPTION
| Range of product: | Wiser Link |
|---|---|
| Range: | Wiser |
| Product name: | Wiser Link |
| Product or component type: | Energy meter |
| Device short name: | EM5 |
| Type of measurement: | Energy consumption totalEnergy consumption per usagePower totalPower per usage |
| [Us] rated supply voltage: | 230 V +/- 15 % AC |
| Network frequency: | 50/60 Hz |
| Power consumption in VA: | 9 VA |
| Accuracy class: | Class 2 conforming to IEC 61557-12 |
| Input type: | Current transformer 0...50 mADigital input for French utility electricity meter |
| Output type: | 2 wires for remote display |
| Number of cables: | 1 cable(s) 25 mm²1 cable(s) 16 mm²1 cable(s) 10 mm²2 cable(s) 6 mm²4 cable(s) 4 mm²6 cable(s) 2.5 mm²8 cable(s) 1.5 mm² |
| Mounting mode: | Clip-on |
|---|---|
| Mounting support: | DIN rail |
| Communication service: | AlarmTotal active powerActive energy per usageActive power per usageTIC information (French utility electricity meter)Total cumulated active energy |
| Local signalling: | Green LED for TIC communicationOrange LED for Wiser wall display communication |
| Transmission rate: | Wiser wall display: 0...24 V at 9600 bit/sTIC receiver: 0...15 V AC 50 kHz at 1200...9600 bit/s |
| Display type: | LCD |
| Display colour: | Black and white |
| Display resolution: | 128 x 64 pixels |
| Display size: | 36 x 18 mm |
| Information displayed: | Energy per usageTotal energyTotal instant powerInstant power per usage |
| Overvoltage category: | III |
| Measurement category: | Category III conforming to IEC 61010-2-30 |
| Connections - terminals: | Top: screw terminals 0.2...2.5 mm² - 0.4 N.mBottom: screw terminals for 5 current transformer inputsSide: extension bus connector (40 pins) |
| Provided equipment: | 5 current sensors - 0.1...80 A (current sensor rating range) |
| Height: | 84 mm |
| Width: | 90 mm |
| Depth: | 67 mm |
| Product weight: | 0.31 kg |
| Product compatibility: | Wiser extension modulesWiser wall display |
| Range compatibility: | extension module Wiser wall display display module Wiser EM5 sensor current transformer |
| Kit composition: | Energy meter EER39100Current transformer EER39200 |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| IK degree of protection: | IK05 conforming to IEC 62262 |
| Pollution degree: | 2 |
| Relative humidity: | 95 % at 50 °C |
| Operating altitude: | 0...2000 m |
| Ambient air temperature for operation: | -25...50 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Quality labels: | CE |
| Material: | PC |
| Fire resistance: | 650 °C during 30 s |
| Colour: | White (RAL 9003) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480568695 |
|---|
