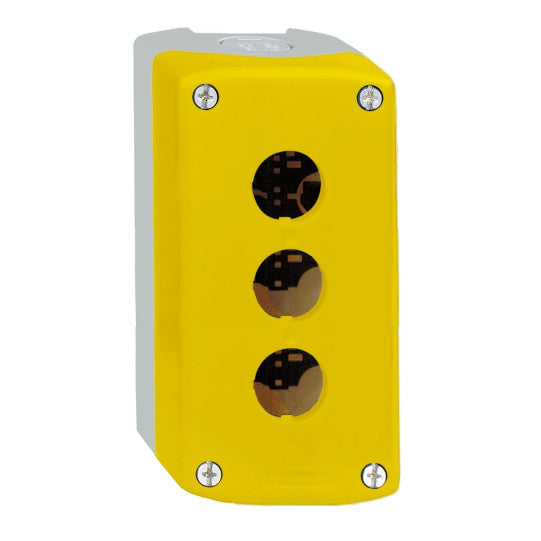

yellow empty enclosure lid with light grey base - 3 cut-outs - XALK03
SKU : XALK03
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
yellow empty enclosure lid with light grey base - 3 cut-outs - XALK03
DESCRIPTION
| Range of product: | Harmony XALK |
|---|---|
| Product or component type: | Empty control station |
| Device short name: | XALK |
| Product destination: | For XB5 Ø 22 mm control and signalling units |
| Control station application: | Emergency stop functionEmergency switching off function |
| Number of cut-out: | 3 cut-outs |
| Colour of base of enclosure: | Light grey (RAL 7035) |
| Colour of cover: | Yellow (RAL 1021) |
| Material: | Polycarbonate |
| Cable entry: | 2 knock-outs for cable entry, clamping capacity: 14 mm2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| Assembly style: | For customer assembly |
|---|---|
| Number of horizontal rows: | 1 |
| Number of vertical rows: | 3 |
| Product weight: | 0.238 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mounting of block: | Front mountingRear mounting |
| Main group: | 3 cut-outs |
| Group of product: | Standard yellow |
| Customizable: | No |
| Compatibility code: | XALK |
| Customizable: | 0 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to EN 50102 |
| Standards: | JIS C8201-5-1EN/IEC 60947-5-1CSA C22.2 No 14UL 508EN/IEC 60947-1EN/IEC 60947-5-4EN/IEC 60947-5-5JIS C8201-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110127324 |
|---|
