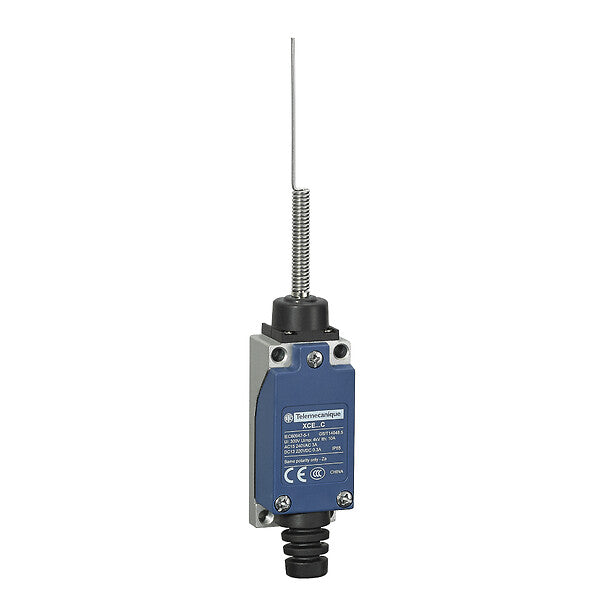

XCE106C
DESCRIPTION
Cat’s whisker
Range of product
OsiSense XC
Series name
Basic
Product or component type
Limit switch
Product specific application
Medium duty
Device short name
XCE
Body type
Fixed
Head type
Multi-directional head
Material
Plastic and metal
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Cat's whisker steel
Switch actuation
By any moving part
Type of approach
Multi-directional approach
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1.5 mm²
Cable entry
1 flexible rubber cable gland, cable outer diameter: 6-9 mm
Contact operation
Snap action
Positive opening
Without
Contacts insulation form
Za
Operating rate
120 CYCLE_PER_MINUTE
Contact code designation
A300, AC (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
Resistance across terminals
25 MOhm
Terminals description ISO n°1
(3-4-1-2)OF
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 3 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 60947-5-1
Marking
CCC
CE
CE
Standards
IEC 60947-5-1
GB 14048.5
GB 14048.5
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
17.5 CENTIMETER
Package 1 weight
134 GRAM
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.597 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
640
Package 3 height
75 CENTIMETER
Package 3 width
80 CENTIMETER
Package 3 length
60 CENTIMETER
Package 3 weight
97.552 KILOGRAM
Indivisible sale quantity
1
