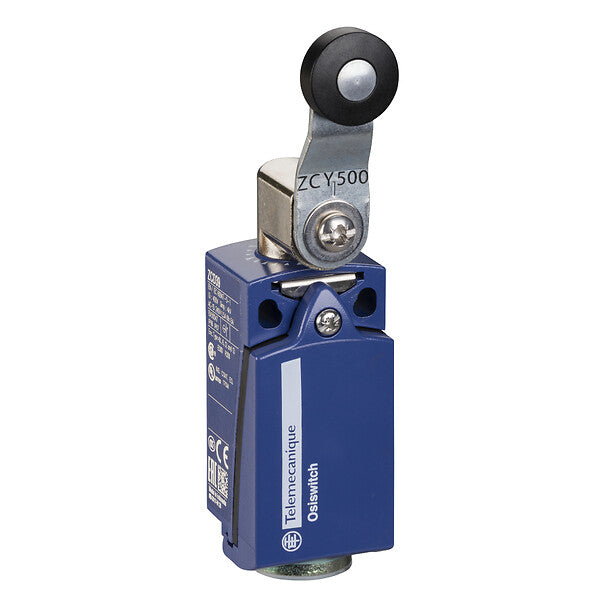

XCKD39500G11
DESCRIPTION
LIMIT SWITCH - 240 VAC - 10 A - METAL XCKD
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKD
Sensor design
Compact
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic
Type of approach
Lateral approach, 2 directions
Contacts type and composition
2 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
Cable entry
1 entry tapped for Pg 11 cable gland
Contacts insulation form
Zb
Positive opening
With
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 10 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V) conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Dust zone
Zone 21 - 22
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 weight
205 GRAM
Package 1 width
5 CENTIMETER
Package 1 length
13 CENTIMETER
Unit type of package 2
S02
Number of units in package 2
55
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
11.3 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
880
Package 3 height
105 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
189 KILOGRAM
Indivisible sale quantity
1
