XCKJ110511
SKU : XCKJ110511
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
XCKJ110511
DESCRIPTION

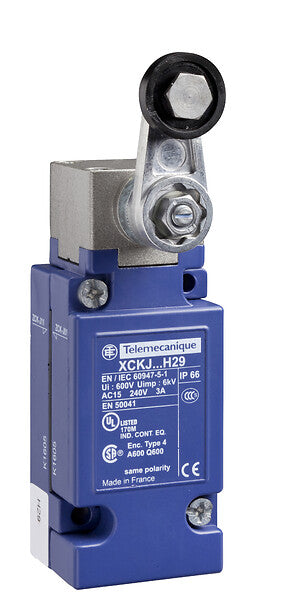

Limit switch, XC Standard, XCKJ, thermoplastic roller lever, 1C/O, snap action, Pg13
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form A conforming to CENELEC EN 50041
Body type
Plug-in body
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic
Type of approach
Lateral approach, 1 or 2 programmable direction
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contacts type and composition
1 C/O
Contact operation
Snap action
Switch actuation
By 30° cam
Contacts insulation form
Zb
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Positive opening
Without
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TH
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
9
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.908 KILOGRAM
Indivisible sale quantity
1
