XCKJ110559
DESCRIPTION

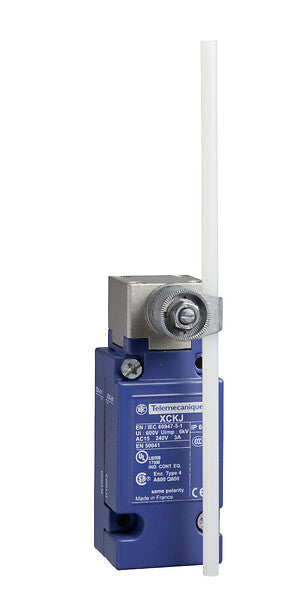

Limit switch, XC Standard, XCKJ, thermoplastic round rod lever 6 mm, 1C/O, snap, Pg13
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form D conforming to CENELEC EN 50041
Body type
Plug-in body
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Type of approach
Lateral approach, 1 or 2 programmable direction
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contacts type and composition
1 C/O
Contact operation
Snap action
Switch actuation
By any moving part
Contacts insulation form
Zb
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Positive opening
Without
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TH
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
18
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.642 KILOGRAM
Indivisible sale quantity
1
