XCKJ390511L0EX
DESCRIPTION

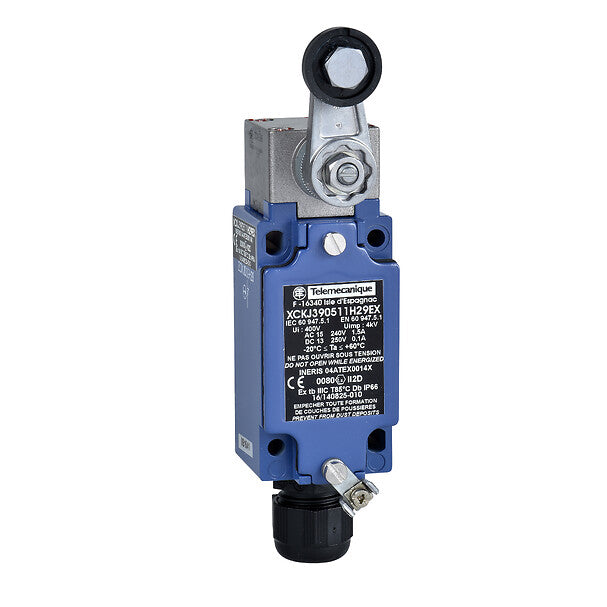

Limit switch, Limit switches XC Standard, XCKJ, roller lever, 2NC + NO, ATEX/IECEx
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form A conforming to CENELEC EN 50041
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever thermoplastic
Type of approach
Lateral approach, 1 or 2 programmable direction
Contacts type and composition
2 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Contacts insulation form
Zb
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
Positive opening
With
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Marking
II2 D-Ex tb IIIC T85°C Db IP66/67
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
INERIS 04ATEX0014X
IEC-Ex INE 17.0020X
IEC-Ex INE 17.0020X
Dust zone
Zone 21 - 22
Standards
IEC 60079-31
IEC 60079-0
IEC 60079-0
Directives
2014/34/EU - ATEX directive
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
15.5 CENTIMETER
Package 1 weight
524 KILOGRAM
Package 2 height
9.5 CENTIMETER
Package 2 width
9 CENTIMETER
Package 2 length
15.5 CENTIMETER
Package 2 weight
524 KILOGRAM
Indivisible sale quantity
1
