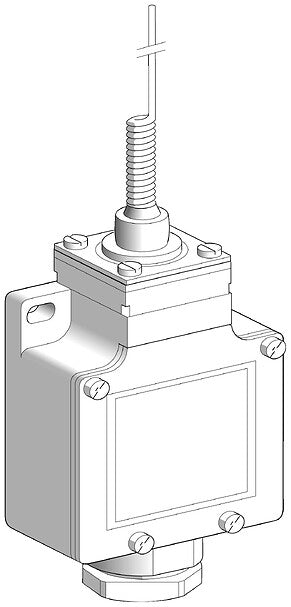

XCKL106
DESCRIPTION
Limit switch, Limit switches XC Standard, XCKL, cats whisker, 1NC+1 NO, snap action, Cable gland
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKL
Body type
Fixed
Head type
Multi-directional head
Material
Metal
Body material
Zamak
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Spring return cat''s whisker
Type of approach
Multi-directional approach
Cable entry
1 metal cable gland entry, cable outer diameter: 6-13.5 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By any moving part
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
Without
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.396 KILOGRAM
Indivisible sale quantity
1
