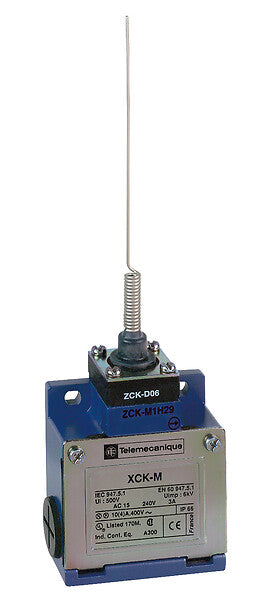

XCKM106H7
DESCRIPTION
Limit switch, Limit switches XC Standard, XCKM, cats whisker, 1NC+1 NO, snap action, 1/2NPT
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKM
Body type
Fixed
Head type
Multi-directional head
Material
Metal
Body material
Zamak
Fixing mode
By the body
Movement of operating head
Multi-directional
Type of operator
Spring return cat''s whisker
Type of approach
Multi-directional approach
Cable entry
3 entries tapped for 1/2" NPT cable gland
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By any moving part
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
Without
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Product certifications
CSA
CCC
UL
CCC
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
0.1 CENTIMETER
Package 2 width
0.1 CENTIMETER
Package 2 length
0.2 CENTIMETER
Package 2 weight
0.32 KILOGRAM
Indivisible sale quantity
1
