XCKMR54D1H29SCJ
DESCRIPTION

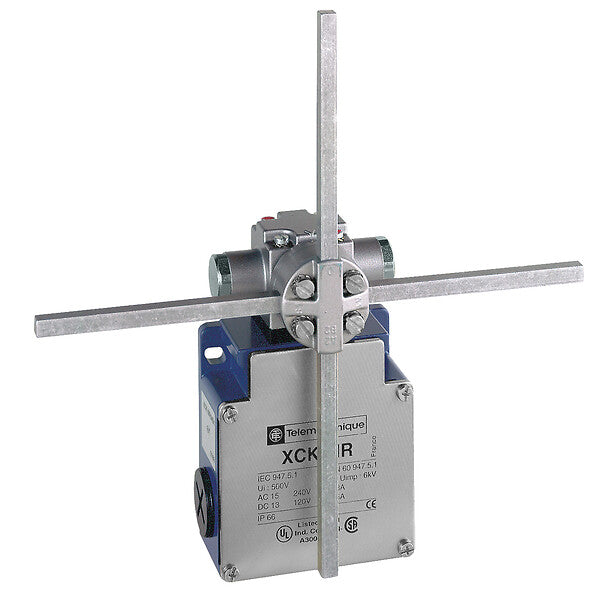

Limit switch, Limit switches XC Standard, XCKMR, stay put crossed rods lever 6 mm, 2x(2 NC), slow, M20
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Device short name
XCKMR
Product specific application
For hoisting and mechanical handling applications
Body type
Fixed
Head type
Rotary head
Material
Metal
Body material
Zamak
Fixing mode
By the body
Movement of operating head
Rotary
Head material
Zamak
Type of operator
Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
Type of approach
Lateral approach, 2 directions
Cable entry
3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts type and composition
2 x (2 NC)
Contact operation
Slow-break, staggered
Switch actuation
By any moving part
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Positive opening
With
Contact block per direction [control circuit]
1 per direction
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(11-12)NC
(11-12)NC
Shock resistance
50 gn conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Electrical shock protection class
Class I conforming to IEC 60536
Protective treatment
TC
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
UL 508
IEC 60947-5-1
Product certifications
CSA
CCC
CE
UL
CCC
CE
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
8 CENTIMETER
Package 2 width
20 CENTIMETER
Package 2 length
9 CENTIMETER
Package 2 weight
0.75 KILOGRAM
Indivisible sale quantity
1
