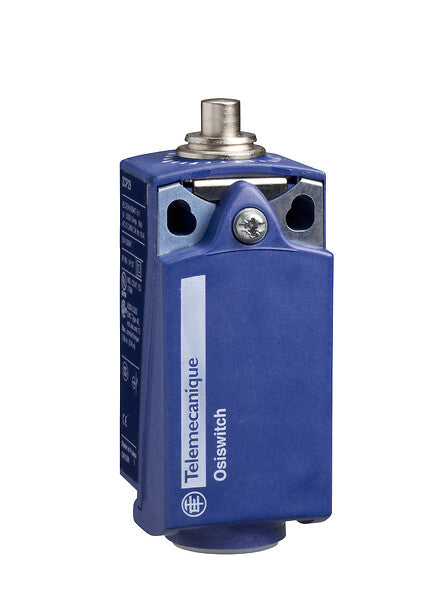

XCKP3128P16
SKU : XCKP3128P16
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
XCKP3128P16
DESCRIPTION
Limit switch, Limit switches XC Standard, XCKP, metal end plunger, 1NC+2 NO, snap, M16
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKP
Sensor design
Compact form C conforming to CENELEC EN 50047
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger metal
Type of approach
Vertical approach, 1 direction
Contacts type and composition
1 NC + 2 NO
Contact operation
Snap action
Switch actuation
On end
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm²
Cable entry
1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm
Contacts insulation form
Zb
Positive opening
With
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 CENTIMETER
Package 1 weight
91 GRAM
Package 1 width
4.4 CENTIMETER
Package 1 length
10.7 CENTIMETER
Unit type of package 2
S02
Number of units in package 2
66
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
6.461 KILOGRAM
Indivisible sale quantity
1
