XCKS139
DESCRIPTION

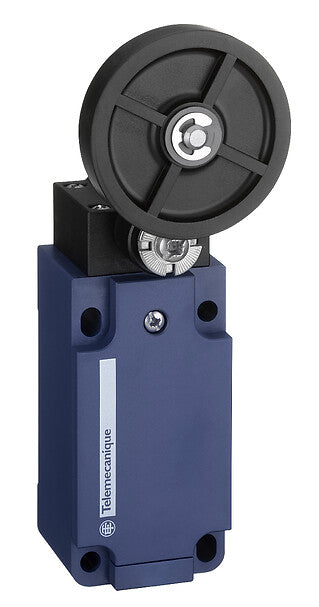

Limit switch, Limit switches XC Standard, XCKS, elastomer roller lever Ø 50 mm, 1NC+1 NO, snap, Pg13
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKS
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Plastic
Body material
Plastic
Head material
Plastic
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller lever elastomer roller diameter 50 mm
Type of approach
Lateral approach, 1 or 2 programmable direction
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
Without
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
40 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.48 KILOGRAM
Indivisible sale quantity
1
