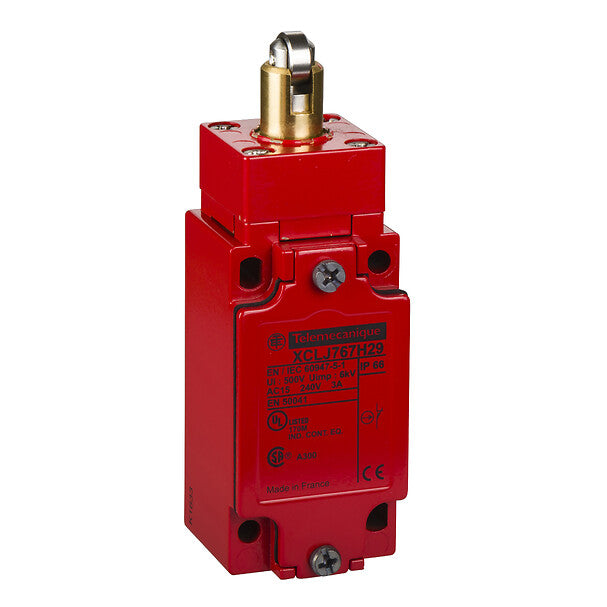

XCLJ767H29
DESCRIPTION
Limit switch, XC Standard, 240 VAC 10 amp xcl + options
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCKJ
Sensor design
Form C conforming to CENELEC EN 50041
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller plunger metal reinforced
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
1 NC + 1 NO
Contacts insulation form
Zb
Contact operation
Slow-break, break before make
Positive opening
With
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
Protective treatment
TH
IK degree of protection
IK07 conforming to IEC 62262
Product certifications
CSA
CCC
UL
CCC
UL
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Standards
CSA C22.2 No 14
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
CENELEC EN 50041
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
40 CENTIMETER
Package 1 weight
4.76 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
10
Indivisible sale quantity
1
