XCMD2121L1
DESCRIPTION

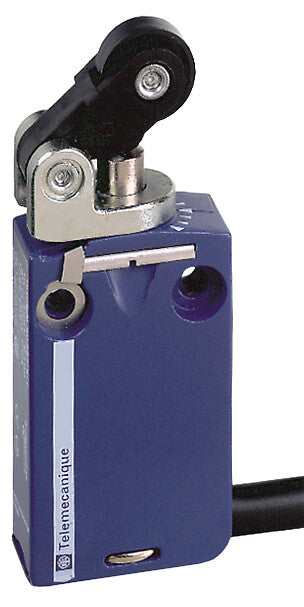

Limit switch, Limit switches XC Standard, XCMD, thermoplastic plastic roller lever plung. Hor, 1NC+1 NO, snap, 1 m
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Fixed
Head type
Plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller lever plunger thermoplastic
Type of approach
Lateral approach, 1 direction
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Removable cable connector
Cable composition
5 x 0.75 mm²
Wire insulation material
PvR
Contacts insulation form
Zb
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 CENTIMETER
Package 1 width
5.2 CENTIMETER
Package 1 length
7.8 CENTIMETER
Package 1 weight
98.5 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
60
Package 2 height
1.6 CENTIMETER
Package 2 width
13 CENTIMETER
Package 2 length
15.5 CENTIMETER
Package 2 weight
188 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
480
Package 3 height
75 CENTIMETER
Package 3 width
40 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
115.24 KILOGRAM
Indivisible sale quantity
1
