XCNR2910P20
DESCRIPTION

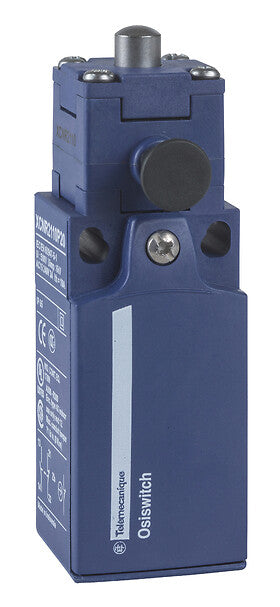

Limit switch, Limit switches XC Standard, XCNR, metal end plunger, 2NC, snap, M20
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCNR
Sensor design
Compact
Reset
With
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Plastic
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return plunger metal
Type of approach
Vertical approach, 1 direction
Contacts type and composition
2 NC
Contact operation
Snap action
Switch actuation
On end
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Cable entry
1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts insulation form
Zb
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Electrical shock protection class
Class II conforming to IEC 61140, class II conforming to NF C 20030
Protective treatment
TC
Product certifications
CSA
CCC
UL
CCC
UL
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.83 CENTIMETER
Package 1 width
3 CENTIMETER
Package 1 length
9.05 CENTIMETER
Package 1 weight
84 GRAM
Unit type of package 2
CAR
Number of units in package 2
20
Package 2 height
11 CENTIMETER
Package 2 width
16 CENTIMETER
Package 2 length
30.8 CENTIMETER
Package 2 weight
1.696 KILOGRAM
Unit type of package 3
S03
Number of units in package 3
60
Package 3 height
30 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
5.801 KILOGRAM
Indivisible sale quantity
20
