XCTR2102P16
DESCRIPTION

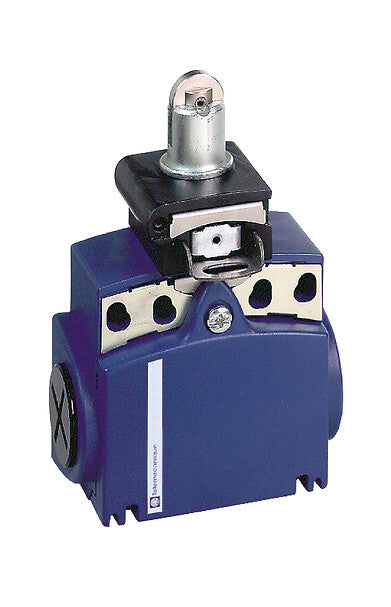

Limit switch XCTR - steel roller plunger - 1NC+1NO - snap - M16
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCTR
Sensor design
Compact
Reset
With
Body type
Fixed
Head type
Plunger head
Material
Plastic
Body material
Plastic
Head material
Zamak
Fixing mode
By the body
Movement of operating head
Linear
Type of operator
Spring return roller plunger metal
Type of approach
Lateral approach, 2 directions
Cable entry
2 entries tapped for M16 x 1.5 cable gland, cable outer diameter: 4-8 mm
Contacts type and composition
1 NC + 1 NO
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts insulation form
Zb
Positive opening
With
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(21-22)NC
(13-14)NO
(13-14)NO
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529, IP67 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Overvoltage category
Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective treatment
TC
Product certifications
CSA
UL
UL
Standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
IEC 60204-1
UL 508
IEC 60947-5-1
IEC 60204-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
11.4 CENTIMETER
Package 2 width
5.2 CENTIMETER
Package 2 length
6.3 CENTIMETER
Package 2 weight
123 KILOGRAM
Indivisible sale quantity
1
